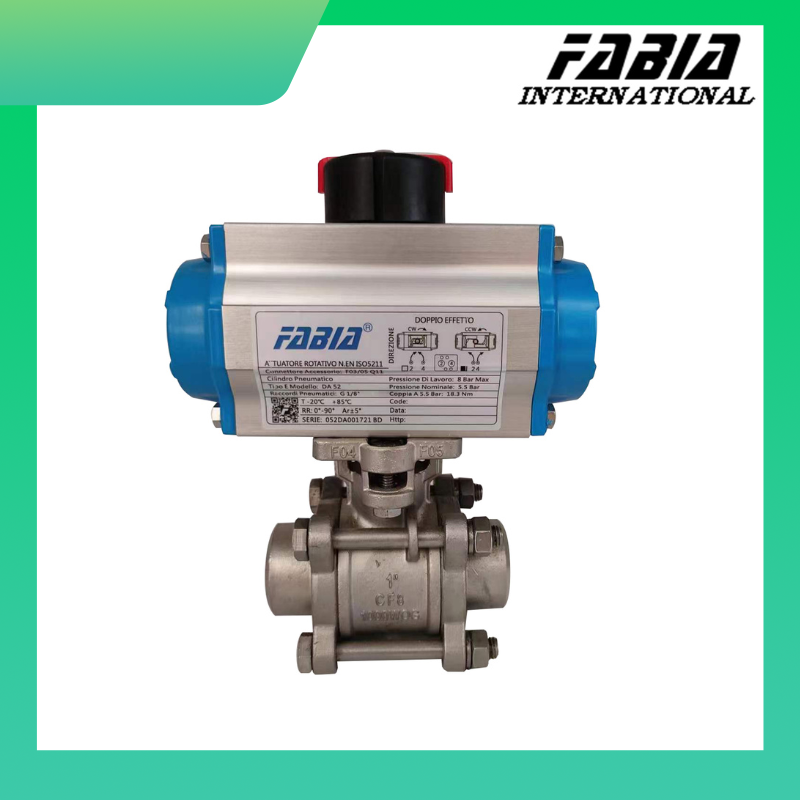

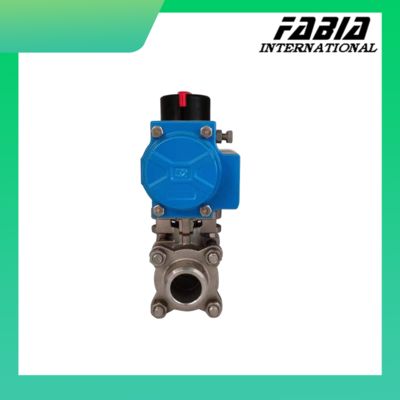

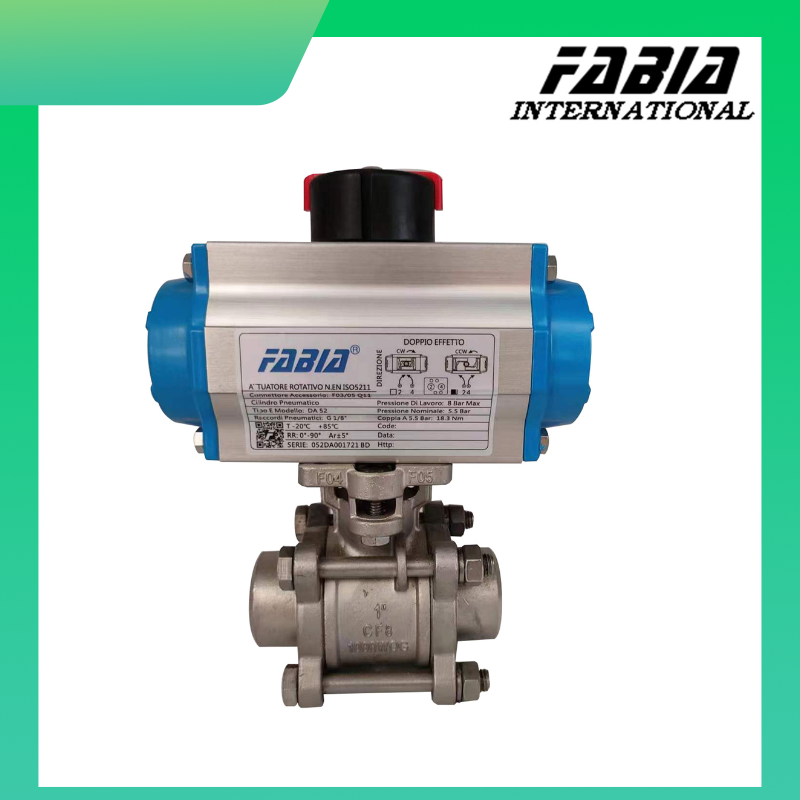

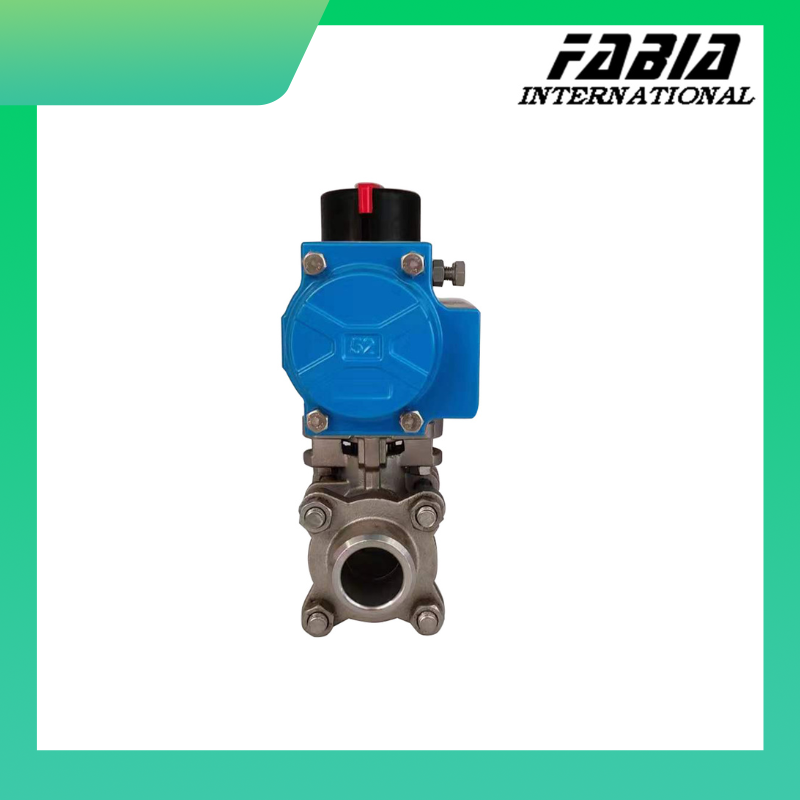

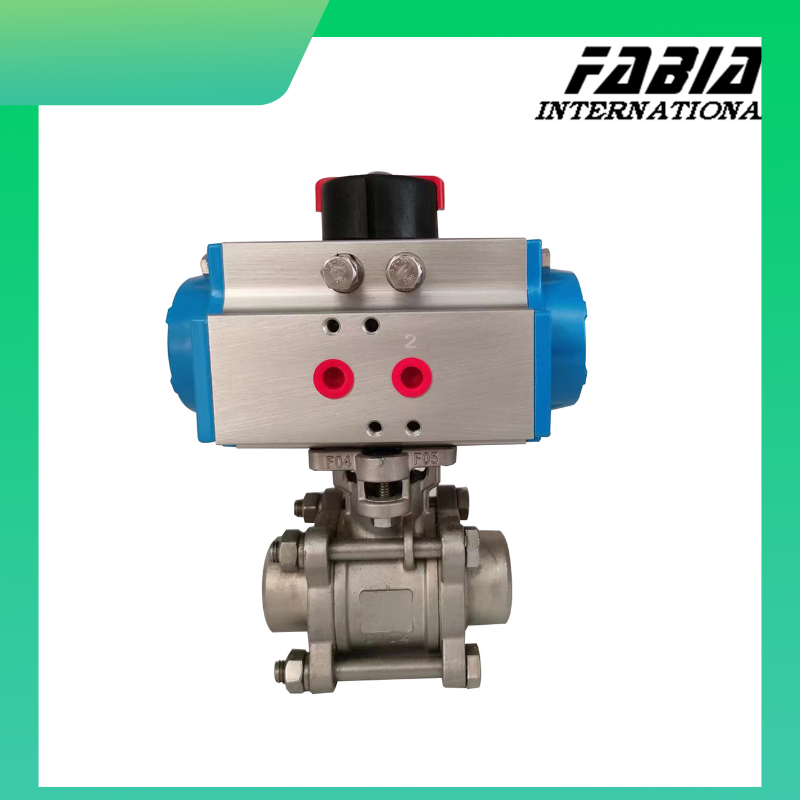

Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal

  • Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
  • Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
  • Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
  • Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
  • Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
Место происхождения КИТАЙ
Фирменное наименование FABIA
Сертификация ISO9001,CE,CCS,DNV
Номер модели 1/8 дюйма ～ 36 дюймов
Документ Брошюра продукта PDF
Количество мин заказа 1 набор
Цена Подлежит обсуждению
Упаковывая детали Коробки/деревянные коробки
Время доставки 15-30 рабочих дней
Условия оплаты L/C, D/A, D/P, T/T, Moneygram, Western Union
Поставка способности 100-1000 набор в неделю

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

Вичат: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Материал клапана Нержавеющая сталь Управление клапана Пневматический
Соединение клапана Резьба Название продукта Пневматический шаровой клапан из нержавеющей стали
Давление клапана PN16-40 Тип клапана Пневматический шаровой клапан
Температура клапана -20 ℃ ~+150 ℃
Оставьте сообщение
Характер продукции

FABIA Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth



1. Description:



Characteristics of pneumatic internal ball valve: angular stroke output torque, open quickly, stable and reliable, widely used.



2. Specification:



FABIA Valve Parameter List
Valve type: Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Fluid resistance is small, pneumatic ball valve is one of the least fluid resistance in all valve classes, even if it is a reduced pneumatic ball valve, its fluid resistance is quite small.
  • Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
  • Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials is easy to seal, and the sealing capacity of the pneumatic ball valve increases with the increase of the medium pressure.
  • Valve stem seal is reliable, because the valve stem is only as if rotating without lifting movement, the packing seal of the valve stem is not easy to destroy, and the sealing capacity increases with the pressure of the medium.
  • Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss of the ball is small, so the service life of the pneumatic ball valve is long.
  • Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process.
  • Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.









Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal 0

Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal 1
